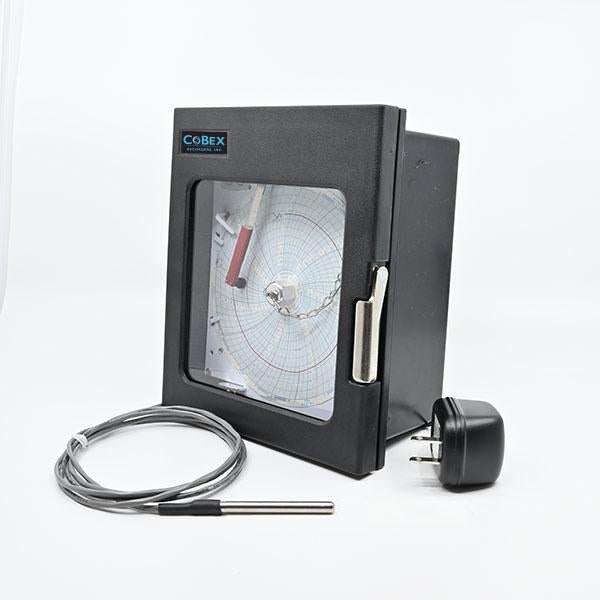

Customizable 6" Single Pen Recorder with Ink Chart

  • Sale
  • Regular price $795.00
Shipping calculated at checkout.


Description

These recorders are highly versatile single process recording instruments. The variety of input signal types, coupled with ease of use, make these recorders ideal monitoring devices. Inherent reliability and precision assure accurate results. These recorders are well suited for the measurement of temperature, humidity, pressure, force, level, time of operation, carbon dioxide, PH and multiple voltage / current signals.

** Please be advised that the assembly of a customized recorder can take up to 5 business days to create. Recorders that are instock are generally shipped within 2-3 business days. You will receive an email to confirm the estimated ship date.

Applications:
  • Blood Banks
  • Environmental Chambers
  • Sterilizers / Autoclaves
  • Laboratories
  • Pharmaceutical Equipment
  • Food and Dairy
  • Industrial Ovens
  • Cryogenics
  • Machinery (time of Operation)
  • Water Treatment
  • Incubators
Features:
  • Microprocessor Based
  • Rugged / durable construction
  • Battery back-up available
  • SPDT relay contacts
  • 6" diameter charts
  • 110V/220V, 50/60Hz standard
  • Flush mounting, surface mounting or portable cases
  • Highly accurate
  • Fast response time
  • Simple push-button calibration
  • Chart hold down tabs prevent curling of chart paper
  • Monitors temperature, voltage and/or current
  • Accepts both inkless and ink cartridge marking systems
  • Designed and manufactured in the USA
*Specifications:



 Input Types: RTD, 0-1 volt, 0-5 volts, 1-5 volts, 0-10 volts, 4-20mA
° Achievable Temperature Accuracy: +/- 0.25 ° C (0.5 ° F)
° Achievable Voltage / Current Accuracy: +/- 0.25% of Span
Chart Rotation Speed: 7 day or 24 hour
Ambient Operating Conditions: 0 ° to +40 ° C, 0-95% RH, Non-condensing
Relay Contacts: 1 Amp @ 120 VAC
Pen Type: Red Fiber Tipped or Pressure Sensitive Stylus
Battery Backup One 9 Volt Alkaline Battery
Battery Backup Life: Minimum 24 hours



*Specifications are subject to change without notice.
° Depends on probe type and standard used for calibration.

** Please be advised that the assembly of a customized recorder can take up to 5 business days to create. Recorders that are instock are generally shipped within 2-3 business days. You will receive an email to confirm the estimated ship date.
