Description

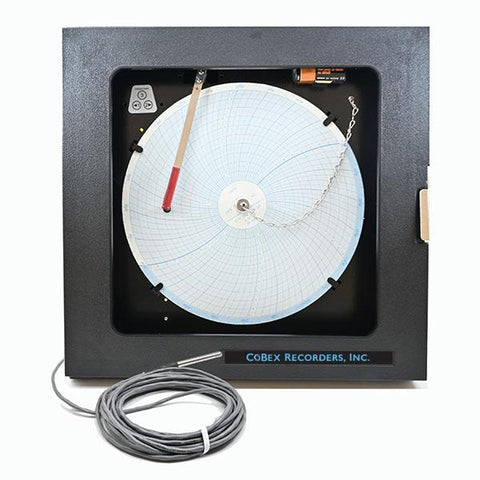

These recorders are highly versatile single process recording instruments. The variety of input signal types, coupled with ease of use, make these recorders ideal monitoring devices. Inherent reliability and precision assure accurate results. These recorders are well suited for the measurement of temperature, humidity, pressure, force, level, time of operation, carbon dioxide, PH and multiple voltage / current signals.
** Please be advised that the assembly of a customized recorder can take up to 5 business days to create. Recorders that are instock are generally shipped within 2-3 business days. You will receive an email to confirm the estimated ship date.
Applications:
|
|
Features:
|
|
*Specifications:
| Input Types: | RTD, 0-1 volt, 0-5 volts, 1-5 volts, 0-10 volts, 4-20mA |
| ° Achievable Temperature Accuracy: | +/- 0.25 ° C (0.5 ° F) |
| ° Achievable Voltage / Current Accuracy: | +/- 0.25% of Span |
| Chart Rotation Speed: | 7 day or 24 hour |
| Ambient Operating Conditions: | 0 ° to +40 ° C, 0-95% RH, Non-condensing |
| Relay Contacts: | 1 Amp @ 120 VAC |
| Pen Type: | Red Fiber Tipped or Pressure Sensitive Stylus |
| Battery Backup | One 9 Volt Alkaline Battery |
| Battery Backup Life: | Minimum 24 hours |
*Specifications are subject to change without notice.
° Depends on probe type and standard used for calibration.
** Please be advised that the assembly of a customized recorder can take up to 5 business days to create. Recorders that are instock are generally shipped within 2-3 business days. You will receive an email to confirm the estimated ship date.
